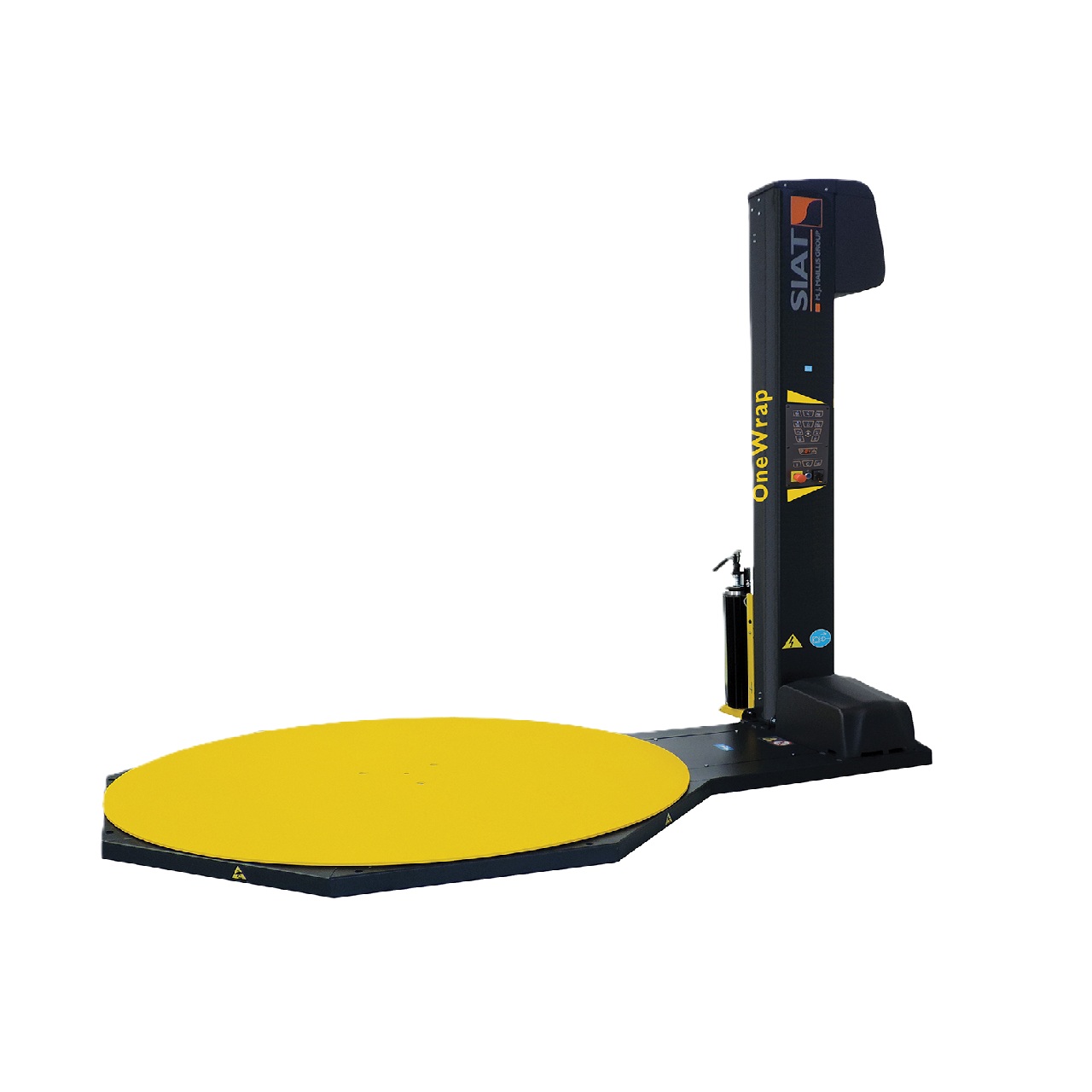

Pallet wrapping machine ONEWRAP EM (303403)
OneWrap (S1)
OneWrap (S1) is a semi-automatic machine to wrap palletized loads with stretch film. It provides versatile opportunities from essential level to moderate level usage. Starting from carriages with basic mechanical brake, up to the motorized Pre-Stretch version: OneWrap offers the right solution for most common pallet wrapping needs.
Type EM (M+100)
Description Powered Pre-Stretch Mechanical Pre-Stretch Electro-Magnetic Brake Mechanical Brake incl. quick release Mechanical Brake Pre-Stretch level (%) 240 / 200 / 150 90 / 60 / 30 - - -
Platform diamater (mm) 1.500 std. / 1.650 / 1.800 / 2.200 / 1.500 HS (open turntable) 1.500
Max. pallet height (mm) incl. overlap above pallet top edge 2.100 std. (Low) / 2.400 (Medium) 2.100
Max. pallet size (mm) 800 x 1.200 - 1.550 x 1.550 (depending on turntable diam.) 800 x 1.200
Max. working load (kg) 2.400 std. (flat turntable) / 1.200 HS (open turntable) 2.400
Power supply 220/240V 50/60Hz / 400V 50/60Hz / others on request
Platform rotation speed 6 - 12 rpm (adjustable) / 5 - 10 rpm (adjustale) for HS platform Max. noise level 72,0 dB (A) Opr temperature 5 - 40°C
Film roll details (max.) width 500mm / ext.Ø 300 mm / core Ø76mm (fix) / weight 20 kg thickness up to 35 micron
CONTROL KEYBOARD
» User friendly icons jog selector for quick parameter set-up
» 9 + 1 customizable programs
» Semi-automatic and manual working mode
» Individual speed for Up/Down carriage movement
» Separated set-up for Top and Bottom reinforcement wraps
» Emergency push-botton according to regulations
