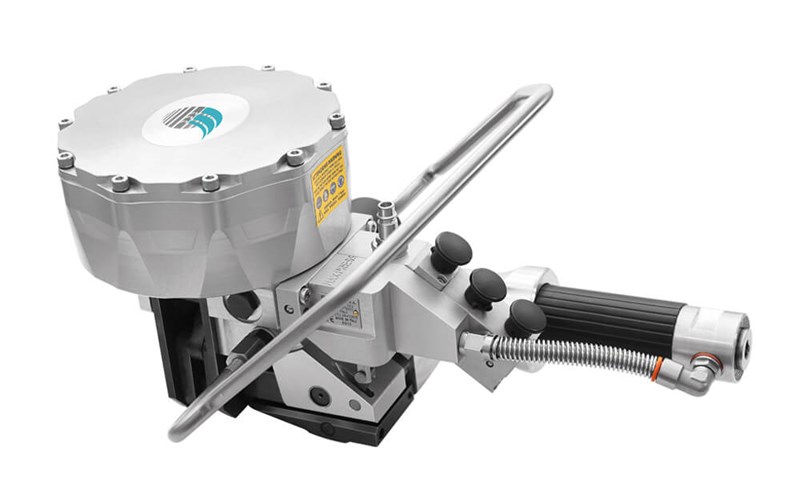

Pneumatic Strapping Steel ITA42 (42-271)
ITA 42 (42-271) is the combined pneumatic strapping tool for 19mm / 25mm / 32mm steel straps.
The tool is equipped with 2 operating buttons, to allow an Automatic tensioning of Your steel strap.
ITA 42 (42-271) is available in two motor versions (9000 N and 15000 N) to provide the most suitable and adjustable tension for Your application.
Easy to be used, ITA 42 (42-271) is already equipped with its suspension hook to grant a lighter operation mode and to arrange a perfect double notch seal joint.
Powerful, quick and strong,ITA 42 (42-271) is manufactured to be durable and with very low maintenance required.
TECHNICAL SPECIFICATION
Dimensions 430 x 260 x 310 mm
Weight 10,3 Kg
POWER SUPPLY
Pressure Range 5.5 - 7 bar (78 - 99 psi) Air Consumption 12 L/s - 25 cuft/min
PERFORMANCE
Max. tension force 9000N - 15000N (6 bar - 87 psi) Tensioning Speed 3,8 mt/min @9000N 5,2 mt/min @15000N
Sealing Seal Double Notch
Joint Strenght 75% of breaking strenght
* * variable according to strap type
